CheckoutCredit CardsImplement Apple Pay

How to Generate Apple Pay Certificates

🚧 This only applies if you are utilizing your own Apple Pay Developer account in conjunction with the Apple Pay Native SDK on an IOS Mobile app

How to integrate Apple Pay API on an IOS App

https://developer.apple.com/documentation/passkit/apple-pay

📘 The integration of the Apple Pay API on your IOS App is solely provided by Apple. Coinflow is unable to assist in development questions related to the native Apple Pay API

Generate Your Decryption Keys

Run the following commands to generate your keys:

$openssl ecparam -out private.key -name prime256v1 -genkey
>openssl req -new -sha256 -key private.key -nodes -out request.csr

Apple Developer Certificate Manager Setup

  1. Go to the Apple Developer Certificate Manager.
  2. Make sure you have a Merchant ID. Navigate to Identifiers => Merchant IDs to verify you have one. If not, create one.
  3. Go to Certificates => All, then click the + button in the top right.
  4. Select Apple Pay Payment Processing Certificate and proceed through the setup.
  5. Upload the .csr file you created (request.csr).

    Note: .csr is the same as .certSigningRequest

  6. Download the file, which will download as apple_pay.cer. You need this file to create the key.

Create the Key File

$openssl x509 -inform DER -outform PEM -in apple_pay.cer -out temp.pem
>openssl pkcs12 -export -out key.p12 -inkey private.key -in temp.pem

Important: You will need to password protect your .p12 file. Keep that password somewhere secure.

Convert to PEM Files

You now have the two files you need to decrypt Apple Pay tokens, but before you can do that, you need to convert them into .pem files.

Run the following commands to convert them to .pem files:

$openssl x509 -inform DER -outform PEM -in apple_pay.cer -out certPem.pem
>openssl pkcs12 -in key.p12 -out privatePem.pem -nocerts -nodes

Expected Output Files

After completing all steps, you should have:

Certificate File (certPem.pem)

-----BEGIN CERTIFICATE-----
MIIEfzCCBCagAwIBAgIIcDQ4Fbx2jWYwCgYIKoZIzj0EAwIwgYAxNDAyBgNVBAMM
K0FwcGxlIFdvcmxkd2lkZSBEZXZlbG9wZXIgUmVsYXRpb25zIENBIC0gRzIxJjAk
BgNVBAsMHUFwcGxlIENlcnRpZmljYXRpb24gQXV0aG9yaXR5MRMwEQYDVQQKDApB
cHBsZSBJbmMuMQswCQYDVQQGEwJVUzAeFw0xOTAyMjMxNDU2NDFaFw0yMTAzMjQx
NDU2NDFaMIGxMTAwLgYKCZImiZPyLGQBAQwgbWVyY2hhbnQuY29tLmdyYXRpdHVk
ZS5ncmF0aXR1ZGUxRjBEBgNVBAMMPUFwcGxlIFBheSBQYXltZW50IFByb2Nlc3Np
iWlORp7+MRSeIt3sEdnWIhY29xvHSdXgMT6kpaUupattcKtlHnLiYlTJHRRCO20x
2thoxaQriM+gFSnAyzrdaOnVTJHRRCO20xxcarcjHFr9GHRVsoysRC/ThwAqMaTs
XEV5VwHqpLuvzOca/+A5Q1MEkhH4lgNrqs5AhKkI1WZv2AWErjxkXBehvZy5C51n
RNcJ4KOAHTePfdrkQ3YVcyMnTlz2QBT8K/uLkoG/H1U8nNfaxwA5m6FDLoVXatC2
oGI+ctCv5Ge2SsEPaUqJ7zE3BU4UsbRvwiXwbWW42YZ2V2wvASdTiXw3/nv7apD4
H+PXFQuC86CSKNKV58jFZZNQoTlU0K+0rBR63ps4bBonVg4Bp2EBntFu5Du/rXMo
U5qxOgbh3/ZNtUT52AQicdJ0c+IgVYP6sGhVGorxMS0lFQ67qaj6luRaqzVovcGl
wa7DzQxcl0HZh2M/Wj9v2d+oGjlINlD9SAlWA/dWXrQF6kzEMoOJKBakO1SRVwD2
9UMDoM5JUK+iBteSFp6iHB7wyfb8VMwzzU3aSWDC+zrsbGXgQsFJ9ZClMyu/aiWs
rbugF9EtKocCWbODlxbRBp310XkPVcOKamZ0UI8P3+AvuMeXdnrFzUUBZnXU8bWM
RuIiK0QZobngHsRO3J/oT1h9URFflg7MrvbAyHTBPv5bSztOPcxOEIfwd+opq6Bc
MXZ+0fErpK5YW7jcahrPRp63e3FZjiKrHWZPFXXOH3N30VKRMDsKbZepNWu4glVb
YwKcj8BAm4LvxkCLODZVIsqYZbNTzyTWbKiz7G53Rt6XqFaQVlqlSxvA97SUfq62
RNcJ4KOAHTePfdrkQ3YVcyMnTlz2QBT8K/uLkoG/H1U8nNfaxwA5m6FDLoVXatC2
8nG5lEs5hYJ2WG9Yo39m1gyCHeNse5sOrph9Dq7tro5mO+nX3XaVaIi3MHFl9Hq6
uMetisso8rg633J/YpJipiz6MOdpf7Q7LqX6M0i3x4BJZfIa3xZPsUoEYObyGTJI
OtAJHpvnTIoDhBApBiH/sDq97pzcsl4VkngxxEiTEjXYQEIhcVQpG6lU6rX9+ekQ
qDRXQRMETBev1j7Y1w/v2K0CIAlnnXPVX52g5FTadoFyVq2a91sA4ao44VabMaz8
W5k1
-----END CERTIFICATE-----

Private Key File (privatePem.pem)

Bag Attributes
    localKeyID: 90 C8 20 E7 8A 2A E5 7E 33 06 FD C5 43 47 9F 15 2F DE 73 90
Key Attributes: <No Attributes>
-----BEGIN PRIVATE KEY-----
8nG5lEs5hYJ2WG9Yo39m1gyCHeNse5sOrph9Dq7tro5mO+nX3XaVaIi3MHFl9Hq6
YwKcj8BAm4LvxkCLODZVIsqYZbNTzyTWbKiz7G53Rt6XqFaQVlqlSxvA97SUfq62
qDRXQRMETBev1j7Y1w/v2K0CIAlnnXPVX52g5FTadoFyVq2a91sA4ao4
-----END PRIVATE KEY-----

Generate Merchant ID Certificate

Finally, to generate the merchant ID certificate…

Generate Merchant ID Certificate

In Apple Pay Developer Console

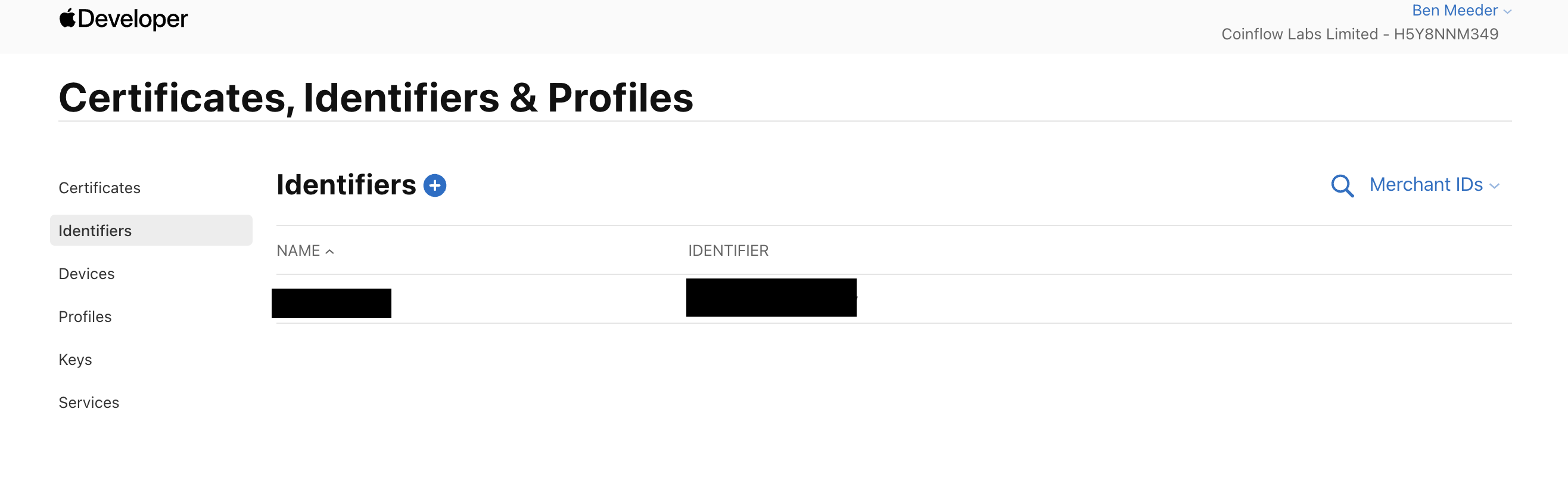

  1. In Certificates, Identifiers & Profiles, click Identifiers in the sidebar, then select Merchant IDs from the pop-up menu on the top right.
  2. On the right, select your merchant identifier.
  3. Under Apple Pay Merchant Identity Certificate, click Create Certificate.

Generate Certificate Request

  1. Launch Keychain Access located in /Applications/Utilities.
  2. Choose Keychain Access > Certificate Assistant > Request a Certificate from a Certificate Authority.
  3. In the Certificate Assistant dialog, enter an email address in the User Email Address field.
  4. In the Common Name field, enter a name for the key (for example, “Gita Kumar Dev Key”). Remember this name.
  5. Leave the CA Email Address field empty.
  6. Choose “Saved to disk,” then click Continue.

Upload Certificate Request

  1. In Apple Developer Console, click Choose File.
  2. In the dialog that appears, select the certificate request file (a file with a .certSigningRequest file extension), then click Choose.
  3. Click Continue.
  4. Click Download - This will download a merchant_id.cer file.

Export Private Key from Keychain Access

  1. Open Keychain Access (Applications > Utilities > Keychain Access)
  2. Find your certificate (search for the common name field from above)
  3. Right-click on the private key and select “Export”
  4. Choose the Personal Information Exchange (.p12) format
  5. Save the file (e.g., as “merchant_id.p12”)
  6. You’ll be asked to create a password for this export (remember it)

Now you should have 2 main files: merchant_id.cer and common_name.p12

Convert and Combine Certificates

$# Extract the private key with Bag Attributes from the p12 file
>openssl pkcs12 -in main.merchant.coinflow_2025.p12 -out private_key_temp.pem -nodes
>
># Convert the Apple certificate to PEM format
>openssl x509 -inform der -in merchant_id.cer -out certificate_temp.pem
>
># Combine them into the final file
>cat certificate_temp.pem private_key_temp.pem > merchant-id-cert.pem
>
># Clean up temporary files
>rm private_key_temp.pem certificate_temp.pem

At the end of this you should have a file that looks like this:

-----BEGIN CERTIFICATE-----
  K2dMZezpllc1LpfVw4WNJ+mKuVCk7L1kmnQqP2J8jIiuBxLEXOFygtTjfS
Q/WUQZS7pCEzHwfsTBgZrQHCGlS7uZzdDyQWF4cEuv+a26WbpGj3Eqb6BKJy
rq86pP/1fXDwAMxNcII6V1fRGkIQkYovUqwJDVUdoxA94CmP+c2fjX1Re/cO
p/kFltfejmvuFxzfMbWW8cMQBBGojeiTYFgbJXSNGA0KaS4hEqOi+o8Vizzz
yvFNffXSmrvvRQnWtnZEZJzVmjBaHDwiDFksrHXTS7I2iRzxfqyP7hUFUczl
lm44w4XnmyNCsh2S5J5Kp5gRxhfqZyCrhw0Ha04wYLHJLCMrxrW6DGYYKNyV
kLgVIyexw6YknS44eFoh7EMvLaF/HlxzUy/5JUDDyPWnbx+q0t60B57+1c6n
La/lVoQCfaPYPkeJbOLca9xJMC+x9Bu5CU/b1hjTqFmKFgFcWYDsXp0Xfigw
m0MEsTvqgXgC0LnJMfkm6rRX+sM/qXOKNMAUQZ/J4NnBjDZE+Hm5Z893cPkH
pifOmG+SDlokv77bPvekBKRUnx/8ErMT5IUVWynFNd3azinxo3wzrPGoSbpu
4FFcnz9JMxpBH+s13foWiBuyl9c7HWz5wxDwLJ47LA9W0vZ0jNaQdRkp8MK+
rWmAOTmdzTYgz/7iwIyUSOqzNrbljf8DsHq4+LZ8u08rbB9q952TNj1NNZM1
lNCLbqrNoEmJdOKQu91KEdAG7n9WzXQlu3jYObHaR0NGTCXjF+fg/k98xtEI
CDTAQ9qfveQ79RFaI8j/MgOF3mEN/P94Ey+RdNtAEPX9MfoIYnUPjVGk3GkN
T3uCcjt7jGfIRMD5pzS9Pw5TAFFOICeM7GiuzIxgtyPg+xvaZ1q90qCoPjSA
249QZ6gmYFOrQgow/nsJHcVPnOHTYGDGsi0Afu1o6m6/3sPnrxiJanzZAtlr
y5WdZrEZ7pwamvS0/BblOgVCKGornO1k40tcBsh7bwIbbtHXqJE7Yz4acBOi
b1XUKOxhu4Oy5b7QucviA82lQB/OR2fGLaSftXzETvPSbygDkpX7LivX/WKF
8oyg9J/CzqtEN28v9V1OIMX40Ca8iCYvyvdHDwMHjDHRMWK1a7aJL7bOFVby
oyj6mfWCawWGjZNK9z6iI9k0wQ4PPhzFiywmciNBqhWI9Rd1z0Y7VnJxIHyR
j4GSGG0r70dEjjZISQlQvA1XuprHV3lTmjJUvXqReGNQCV+z7by8Xq/ZPy1s
67OC2WTrM8ADnbedptzRTNfBUyIF/PbL3AF5jmNz9vaozBGihQ58EkFXEIdY
eJ1cbKQgiqFoz2BfVQzEIi2lwqcHmKz6VYClzjYytnaymyQ472vmvDebdWy3
x8Ak7qmUsguLOW1nk3mhFq1FWy4ykvKagUcuFx5Iqu9792bCToAxjHaQiLhg
Uno2PXrnSvHPwhAqHvZk+OjG0aJ0g3mshx99Ljuxth72aelb57Fyv5ppqthH
vY6szmEvbHCMxN++8G94x1397GIDp2DdtHQc+kbwaj8kQoLOCvpsI2xmOGzK
i1qlQmokvEFv8u/Qp0n3IhbsUskk5J/qQKisbfRSTHBPFjBFDwull1YXavOY
eyuHtId5kQp6aIbnIEprjPhqjwiiLsYAIeZc5wXDAyDK8jlFTjvsveC3x546
TjV40MMTSMMyrX/SxH8w7S7MU4Q4a5pRGti2X6iUS0syxy4HFwynSsYhqZci
KDm/0gkSJanEfss0RrGiNS9yUODWFrB+1d1KT3jlzxz4XF5lwqPw+JORupJc
fOfTkQZYRpwPO/PQ/a5zI+p0aZlvMFi+Lt+0lGGisw9/cmsW21YzM9H2OHCY
5A9sf5Q81MN57NUmxnsoADAPZMedsqhiXvXVpRd8YvCDLBh8gVNYbG33Boig
uOQQ+T9ACDW3bqot4MWSRLTIfPr3G8DxGxpscbN6JLqTjCXT0GfbhcxPtvEq
uR+P0FyeWJAVUtr3ASw++QaSO96SHFCPNbkhdP7mdURwR5Q/hGTEZbxauMyY
+dqNYjmhVnA3HU535p7ZqYFP9TVqSkkEWlAAE/prm7jP/nPh4d5A5kOPgVWY
-----END CERTIFICATE-----
Bag Attributes
    friendlyName: main.merchant.coinflow 2025
    localKeyID: B8 83 34 7D A9 4F 5E 00 A0 EB BD EA CC DD 5B 02 23 CF 98 F5
Key Attributes: <No Attributes>
-----BEGIN PRIVATE KEY-----
Bgga4+LQos7nqdljT0pZV6FiO+8ZqRKKDqHdn0IEo4GBosfYZZroRzN/9aUr
7Wqus6q9Qrtgs7QxI5rrf4ki+IuDbaG/GG1QfktjdyxAFi5RLWTVKf3bdyLB
gEi9A7UO+tdj4uuKayUFnf8+YhUSK/VylJP6v2kGq+pQbHbTVKYBQz5iqgvT
tcgwMnyJxIAiSG/MGNoq6vARzSRw2/ap1szUt0WV3lxFpJ5Fhq86+hrq95QS
p6J5OMb0g4cTl2XsTJHOD6SBkbeyO8PcGLXUgYWW+QYkPVwqXZGA1fb34I/C
qFAQHorAJQoFlA0sZUl5RiR5fmc4ownV39tuZofrH7vYnPsuc9seGrTA2wX7
V5CNAiK0k956wBOVH4BaQInWL0B5zANaz5h+uDP5hr1zn63qr9wozrP9CN/T
T9OkQEMSCIvWInLE6FFxz5sIXFRZgdaHsH97NBaEweeZ0vsc9fag6sDcdKjQ
fqiYFoRWxZSnAw37vi+wbHmt5ML+zJQ7s4l3SitI0Izv5oCfPYYDtRcG+nYc
JkR83whFgZ47+81arUaexra27pGyu01vzot3f9k8I3jbBfWa7mHFpfzHg9MW
0Vs3OdWVePvEQyaWMd0KxBBxVrrhGpd1VW/+r5VRTw2Irgs6iJSVXV2Beywt
9gigIZTdnAejWJz1I5gaE7JVvYPvmAmFFXRd1IU3pougTIfjUASjt516aAQU
NuZKFGZtMQuKtVs+Dn2xVi1OTWC+Cv2PtNIi9H5scI62HYGzSS3+jAj3g5R7
dnZ02UtggxZu3CuUuZYmrAp9Fgf4KLXT7tx+pRpgu8v8G67OE5lnlU3xVxOg
JTccSvtzSZD088+OYkHqBLB6aGYRI0Md0yI2bkh4V4D87fGKxzkNTWx05tbC
HfwsnTLY/wYHxGVRMqqPjvagSflm34HDiKzwgOF/nsGyr9OZ8dQUxIg3V61Y
SlFNUgbBnkuP8fIt0A7/7sbfKkEqw9ddrBI2rlBvh78Tyw2FLd51MEL/G59I
GrTPepQhGfcwXN42fjrFznqKJm+dGagbEmFHY9vH3ZbB9aiKahZMrUPRWjoz
9SXrrOCJlJePgKWQexxqDCLfmjZw5ZUSGhxUcsMY+oNW7tVjk5GmfmX6Wd4N
ebRAb6+Lcv6GdJrGvJlm5494/MLeq3rWtL+FhC3g738JAn1rHLJKSgM4Ieg/
SQ0DZXb15F98q4rj3RcIVFJYpapDwxF3Ja+tMMS1jqrGlJfO959YsPsaiyj6
Nuque4reMlfzY6GhOJsHxaRYiADaMuECz1Uki/ShGlo9b7nuX4jOkY+5WEfT
5WPcAp1S9nHI2IsB6gOQoqsJv+dmtS/K270fcO7qoAPqTurrrOXThS73vOod
qT5cqr7wzzKdFCBOr0CNkKo8YtoGfPtZ35Yp1XvC9W6hHeEd73xUOPDF3upX
ilZZ+OxC7meqmu3QgRt7C5+nZneYyl9VUNgVVSycwVbdrfSP3eT7Kyc8ZNtU
7hYoo/IgJTc3wx9T2U7XfQX1Bef/OVmuWUOvqQPDdVZiT7FI95/6iuVfJUkM
0+8PDhuZRMP1rWUQaQUJYmzUhzVl7Ng0qjV9+yFMVPip2e6AaJpsLDRGzI9a
-----END PRIVATE KEY-----

Get Apple Pay Merchant Identifier

Go to https://developer.apple.com/account/resources/identifiers/list/merchant and copy your Name and Identifier

📘 Please provide merchant-id-cert.pem, certPem.pem, and privatePem.pem, Merchant Name and Merchant Identifier to your Coinflow integrations specialist

Verify your Merchant Domain

  1. Go to “Identifiers and click into your identifier:
  1. Scroll down to “Manage Domains”
  2. Click “Add Domain”
  3. Download site association file
  4. Upload site association file to your website per the instructions
  5. Click “Verify”

📘 Please confirm with your Coinflow integrations specialist that you have completed this step.
